        密閉音腔

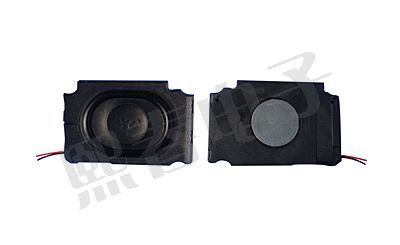

        Product Model:KFS2535SB-188

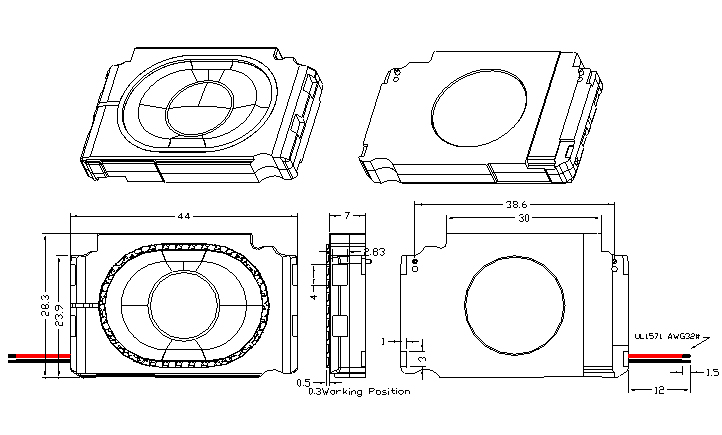

				Mechanical Layout & Dimensions:        Unless otherwise specified,tolerance: ±0.2 (unit: mm)













				Electrical Specifications:

				 Typical Frequency Response Curve:











								1

								Rated Sine Power

								1.2W. Max.(Short-term):1.8W





								2

								Frequency Range

								1000±20% Hz @ 1V(without baffler)





								3

								Resonance frequency

								f0 Hz ～ 20KHz





								4

								Impedance

								8±15%?(@ 2KHz 1V without baffler)





								5

								DC Resistance

								7.4±15%?





								6

								Sensitivity

								102±3dB SPL at 0.8k 1k 1.2k 1.5kHz @ 0.5w(2.0V) / 0.1m









































        Changzhou Xichun Electronics Co., Ltd   Design by:Zhonghuan Internet
