密閉音腔

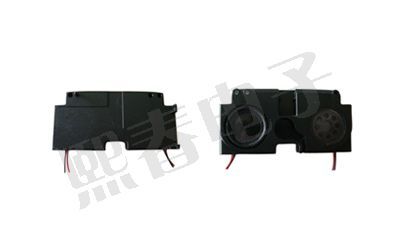

Product Model:KFS18SB-2S-W9

Mechanical Layout & Dimensions: Unless otherwise specified,tolerance: ±0.2 (unit: mm)

Electrical Specifications:

Typical Frequency Response Curve:

		18H	18K
1	Rated Sine Power	0.7W. Max:1.0W	1.5W. Max2.0W
2	Frequency Range	1200±20% Hz	850±20% Hz
3	Impedance	8±15%?	4±15%?
4	DC Resistance	7.4±15%?	3.6±15%?
5	Sensitivity	95±3dB	95±3dB
